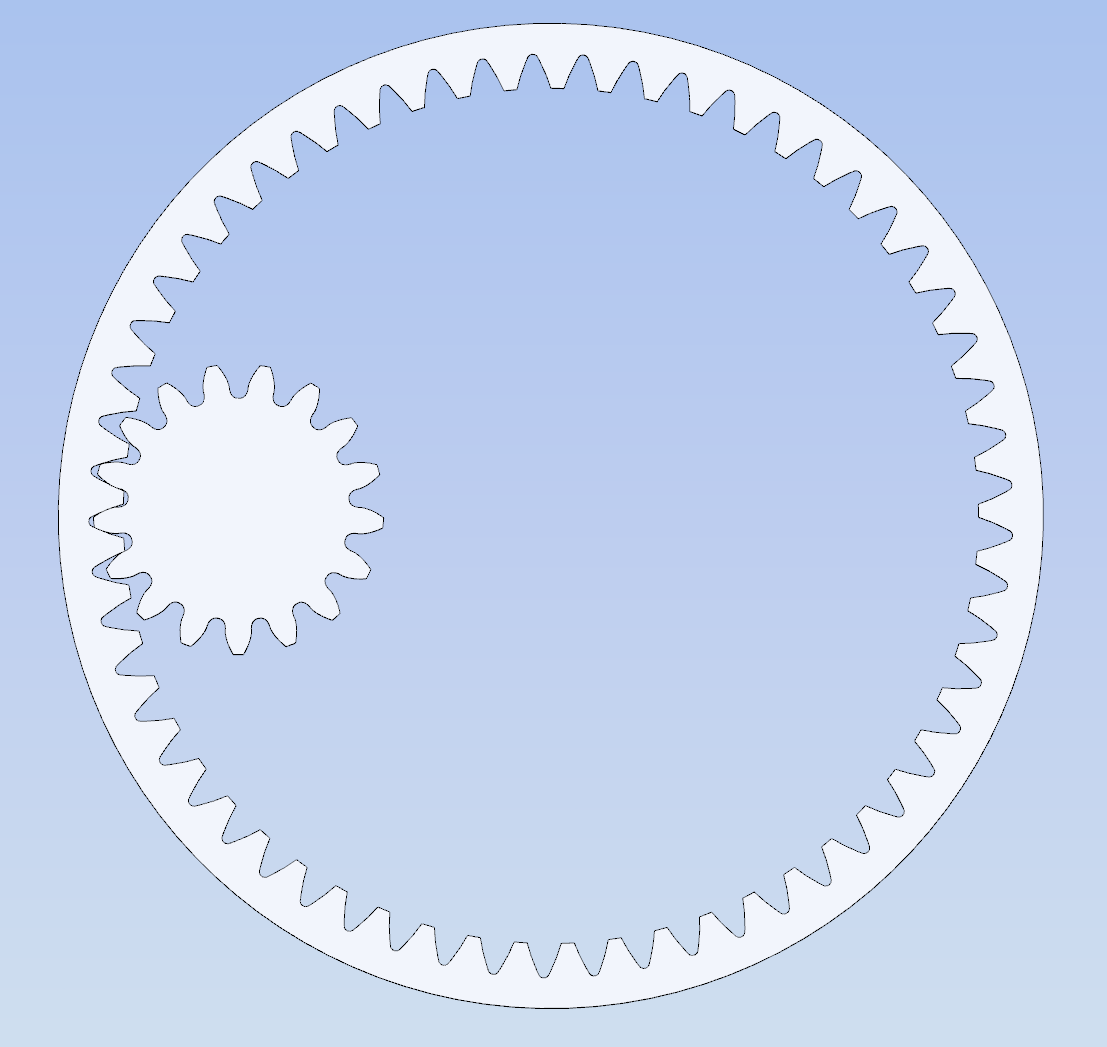

Internal Cylindrical Gear Module Released
This module features the following functions:
One-click calculation function that automatically calculates detailed parameters for external and internal gears and performs geometric verification.
Automatic recommendation of center distance and profile shift coefficients.
Strength verification function.
Backlash calculation included — what you see is what you get; parts can be manufactured directly according to the software values.
Tolerance calculation included, enabling simulation of all post-machining dimensions for verification, identifying problems early to mitigate risks.
Calculate internal gear from external gear parameters.
Calculate external gear from internal gear parameters.
Precise 3D modeling.
Export 3D files (STP format).
3D animation function.
Module operation video tutorial:
Training video original file download:
Alibaba Cloud Drive
https://www.aliyundrive.com/s/t9KCTVquUcz
Baidu Cloud
https://pan.baidu.com/s/1YCufP5IMO1BxL-RrzTg0JQ
Extraction code: 2aaa
Presented by ETAGEAR
7/5/2023 9:00:00 PM
