Understanding Gear Modification Drawings

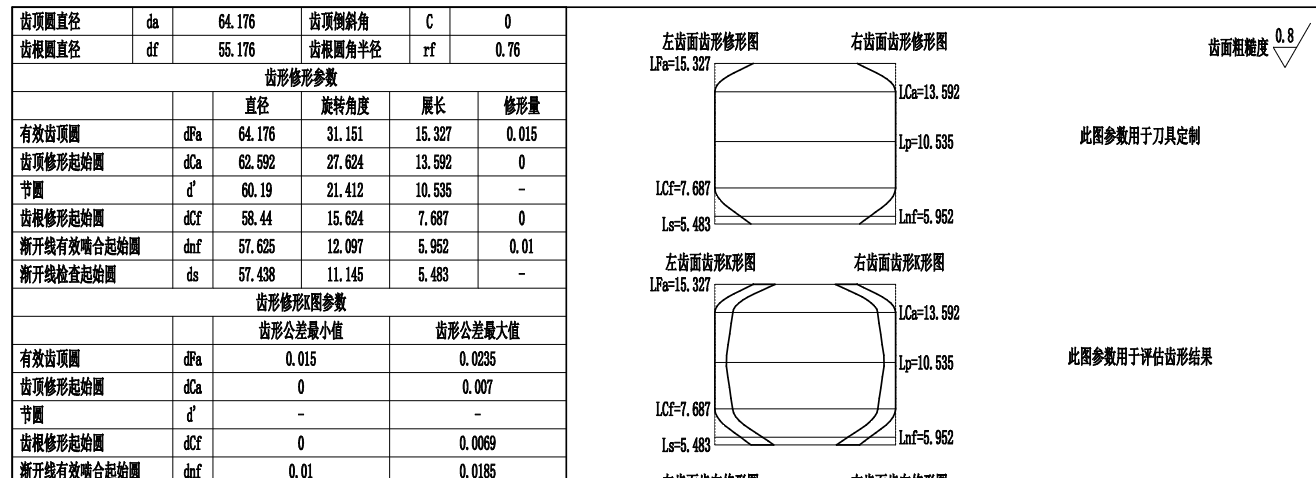

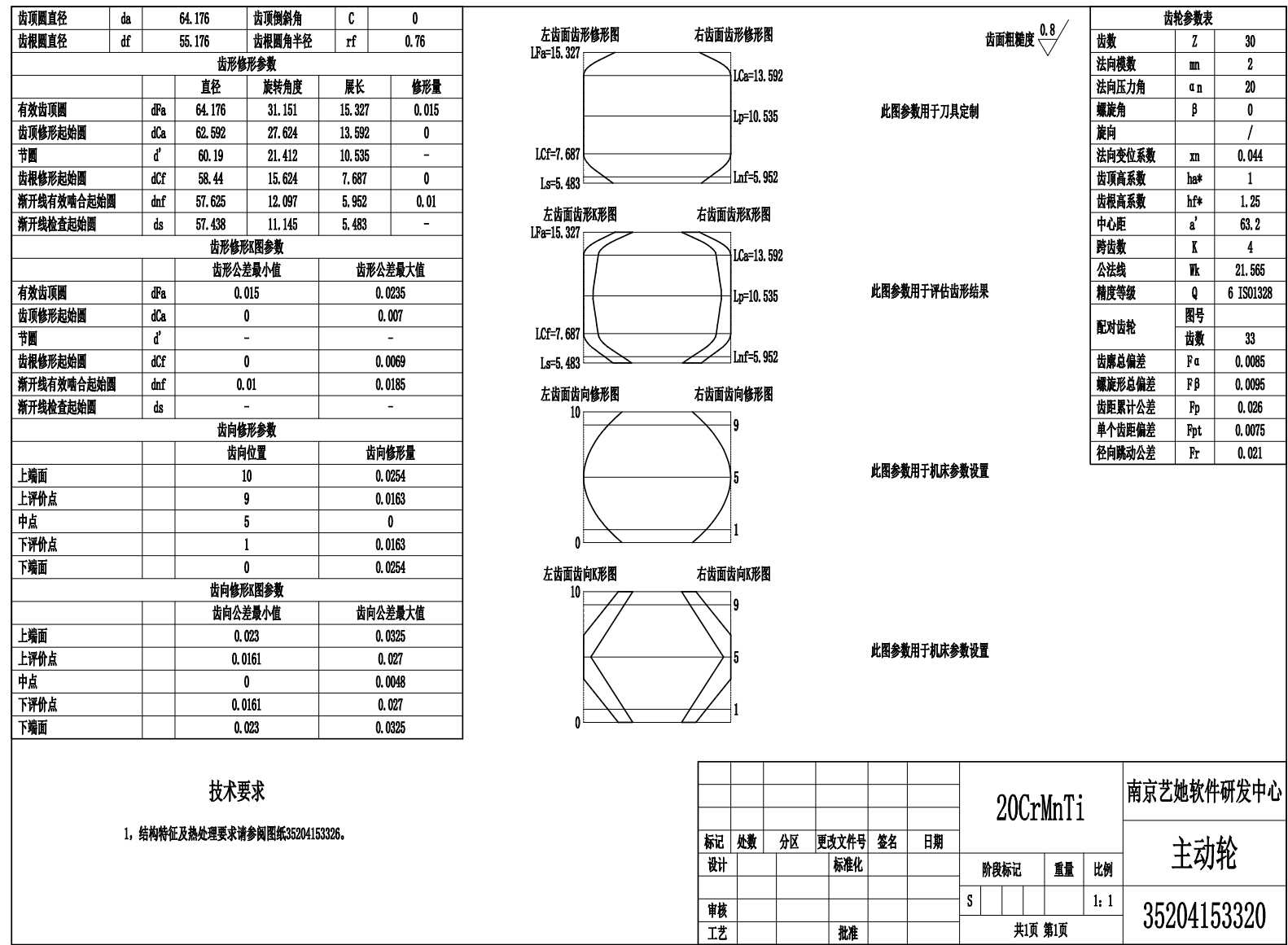

When we receive such a modification drawing, it's easy to wonder: what does this modification curve represent? Let's use the drawing above as an example to explain exactly what it means.

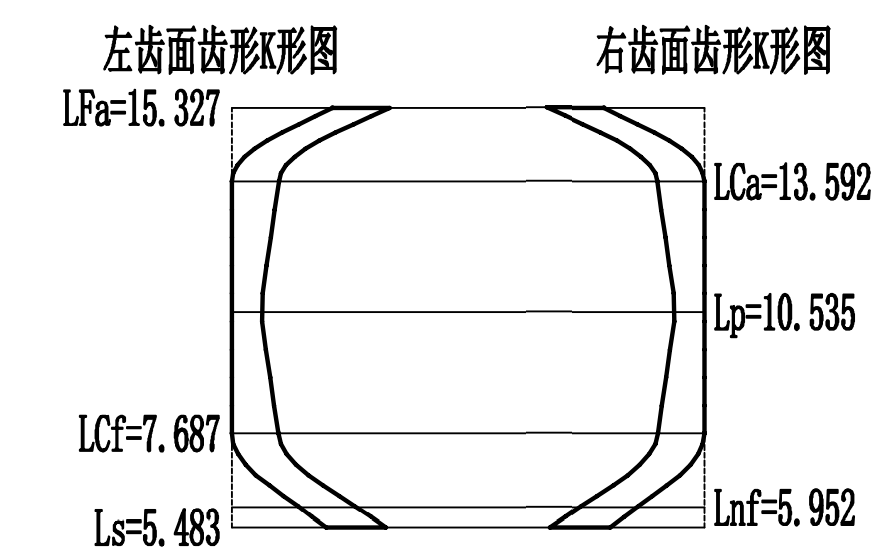

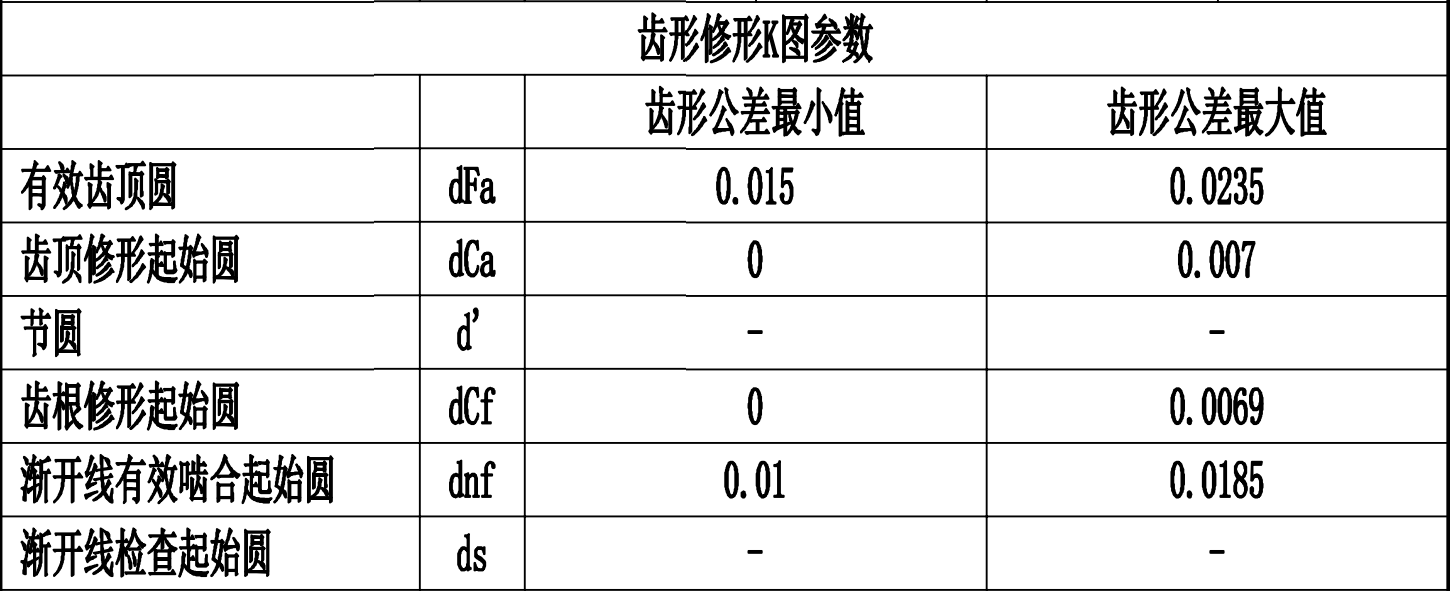

On the left is a data table specifying the modification amounts at certain positions. Based on these values, we draw the profile modification diagram on the right. This diagram represents the line chart shape we would obtain from a gear comprehensive measuring instrument after gear machining. The vertical axis is roll length, and the horizontal axis is modification amount.

At this point, you probably have many questions. Why can a gear comprehensive measuring instrument evaluate tooth surface quality? Why is the report for an ideal involute a straight line? How does the profile measurement curve of a modified gear constrain the tooth surface shape?

Let's answer these questions one by one.

Why can a gear comprehensive measuring instrument evaluate tooth surface quality? A gear comprehensive measuring instrument is essentially a profilometer, except the workpiece can rotate. The report we see is actually the motion trajectory of the "profilometer" stylus. Similar to a profilometer's principle, it scans across the tooth surface to evaluate machining quality.

Why is the report for an ideal involute a straight line? Because with a conventional profilometer scanning across the tooth surface, you can't really tell whether the machining is acceptable — you can't visually judge whether the stylus trajectory follows an involute. Clever engineers introduced the method of rotating the workpiece. Using the involute property: when the gear rotates at a constant angular velocity ω, the stylus moves along a line tangent to the base circle at linear velocity v. If the gear has a perfect involute, the stylus moves in uniform straight-line motion, where velocity v equals the base circle radius times angular velocity ω.

To help understand, let's watch a simulation video.

https://www.bilibili.com/video/BV1Fm4y1N7Kt/?vd_source=0f09ca8660d0f5fe7ba952d027379311

Now that we understand the measurement principle of profile inspection, reading modification drawings should be straightforward.

This modification parameter tells us: at gear diameter 64.176 mm, the corresponding theoretical roll length is 15.327 mm, with a modification amount of 0.015 mm — meaning the stylus position on the involute needs to be 15.327−0.015 mm when the gear rotation angle is 31.151°. At gear diameter 62.592 mm, the corresponding theoretical roll length is 13.592 mm, with zero modification — the stylus position on the involute needs to be 13.592−0 mm when the gear rotation angle is 27.624°.

How do we calculate the modification amount between diameters 62.592 and 64.176? Looking at the diagram, it's a straight line — the vertical axis is roll length, and the horizontal axis is modification amount — so we can calculate the modification amount at any circle using geometric principles. Similarly, some designers shape the modified profile as a circular arc crown. In that case, at least three position values are given, and using the three-point circle determination theory, we can obtain the detailed parameters of that circle, then calculate the modification amount at any roll length on the axis.

In practice, we approximate the modification amount at any circle on the gear as the tooth thickness reduction at that same circle. This gives us a convenient and fast way to obtain the actual modified tooth profile. Because physical acceptance is evaluated per the K-chart requirements.

Approximating the modification amount at any circle as the tooth thickness reduction introduces very small error. For physical parts, as long as the measurement stays within the tolerance band, it passes. Some companies print the K-chart template, cut it out, and overlay it on the report — which is also a practical method.

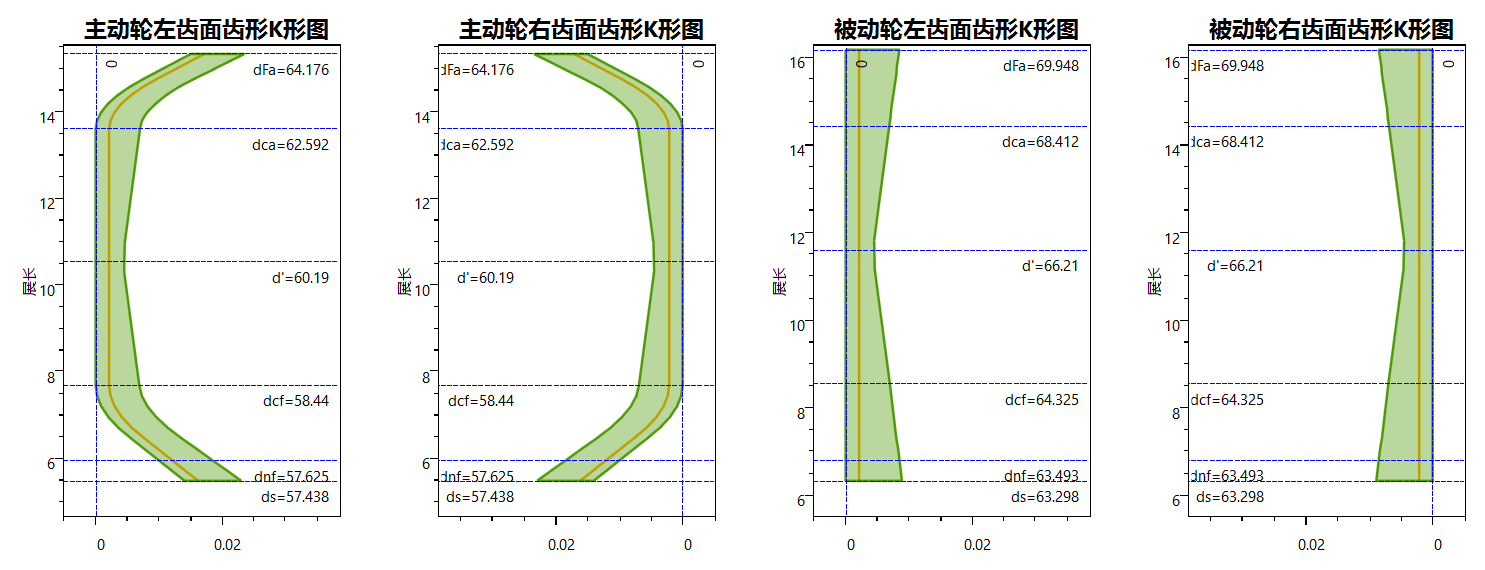

Below, let's see the difference between the modified tooth profile and the theoretical tooth profile according to the above requirements.

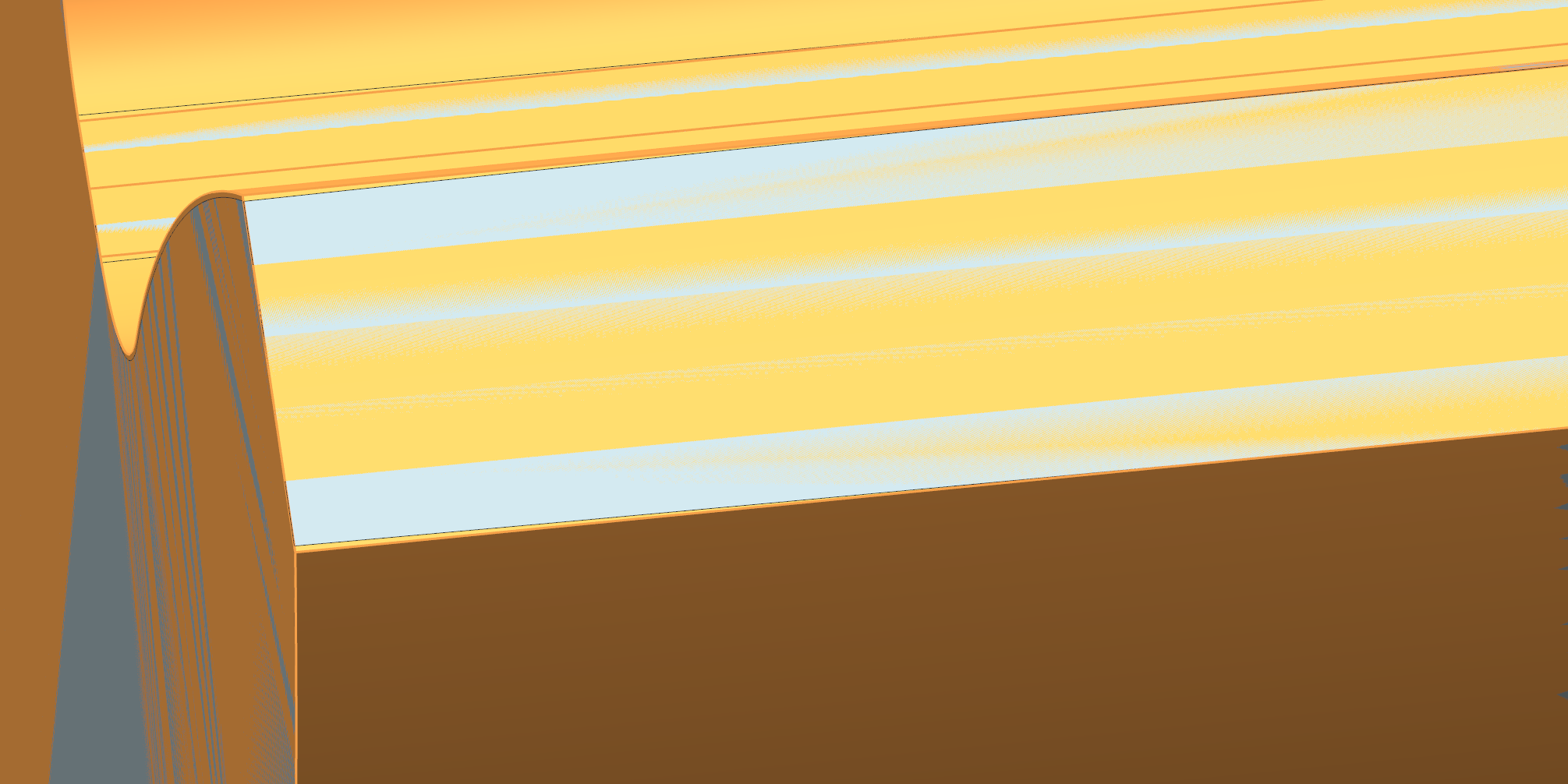

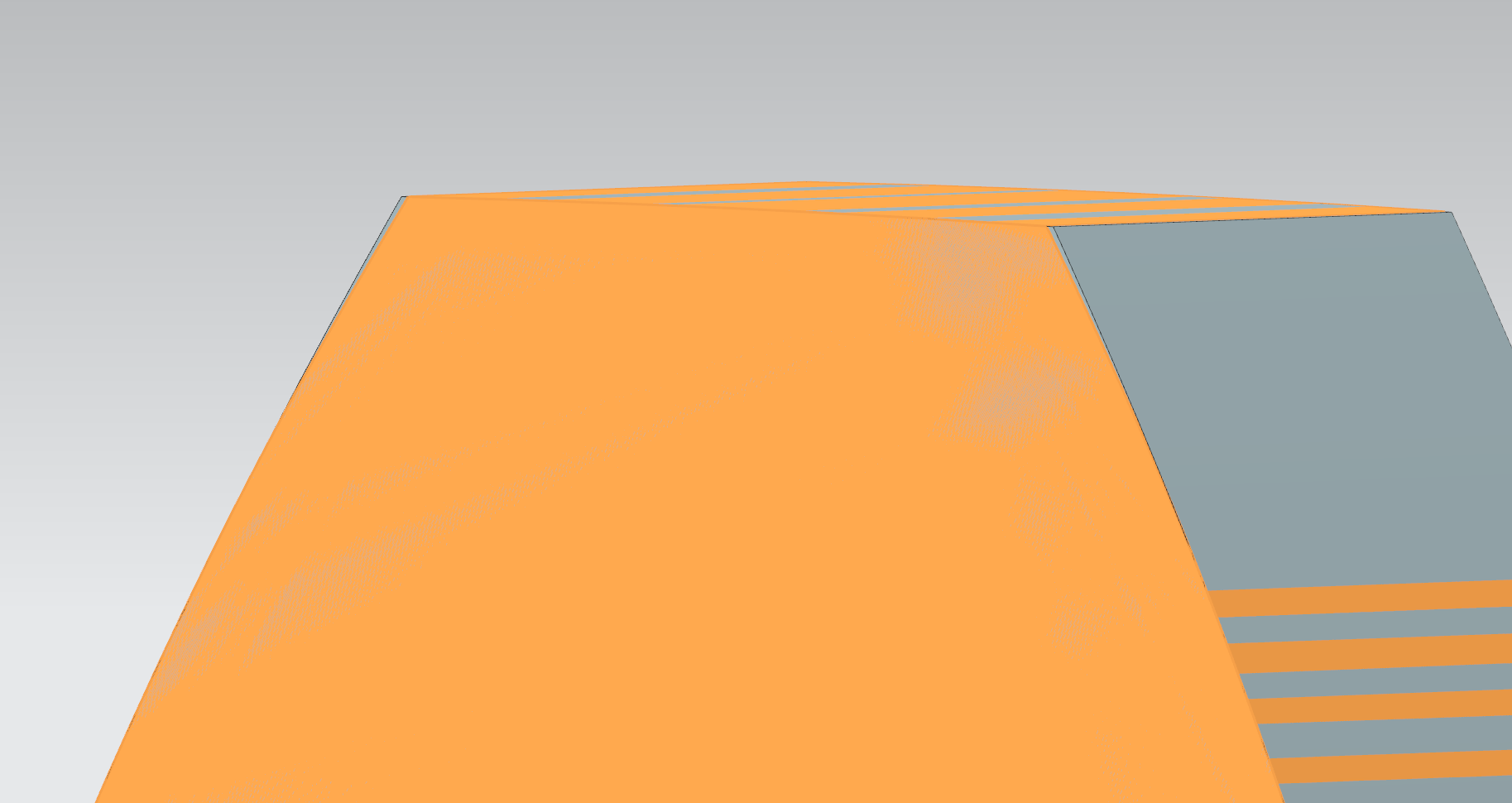

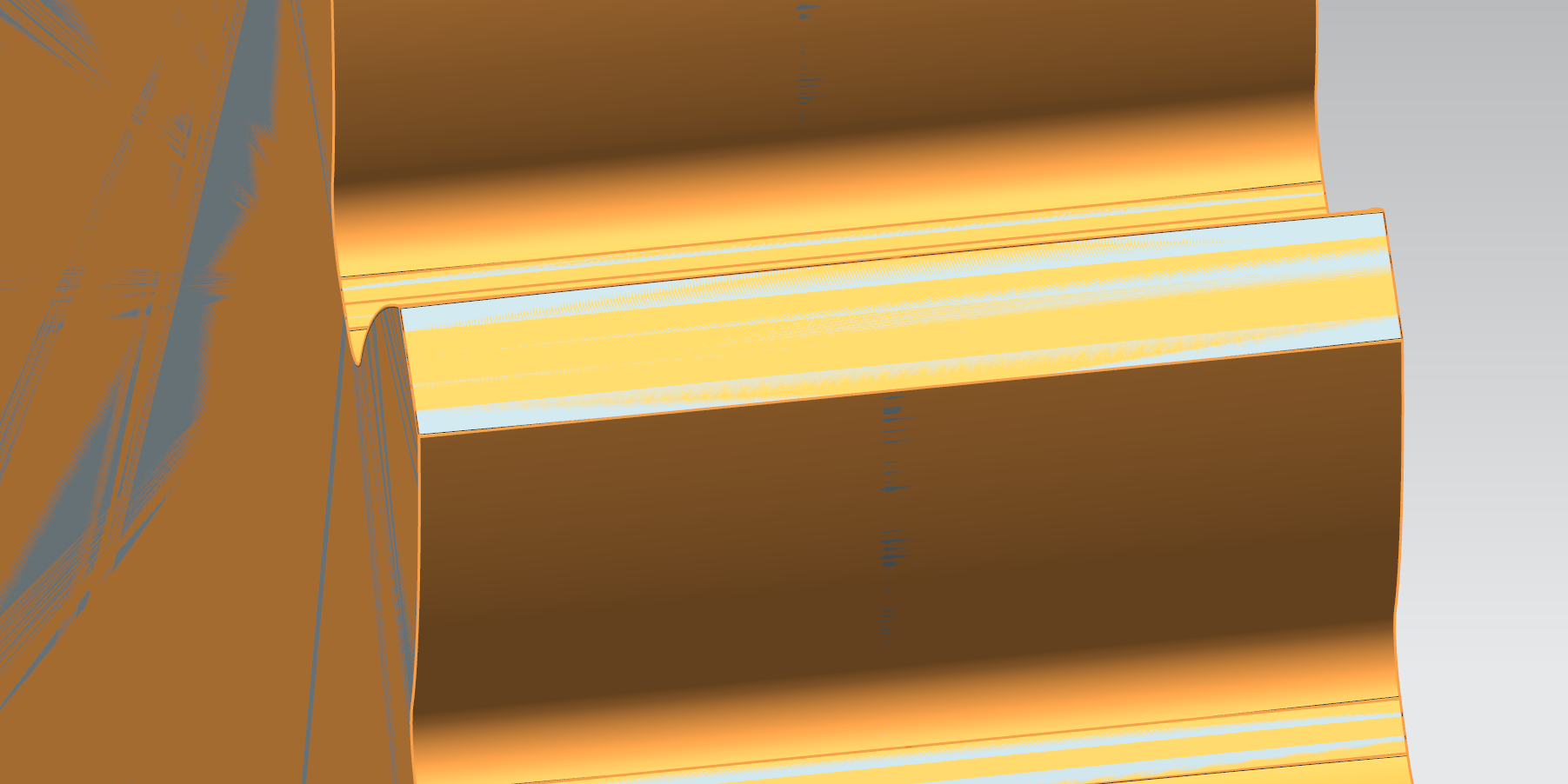

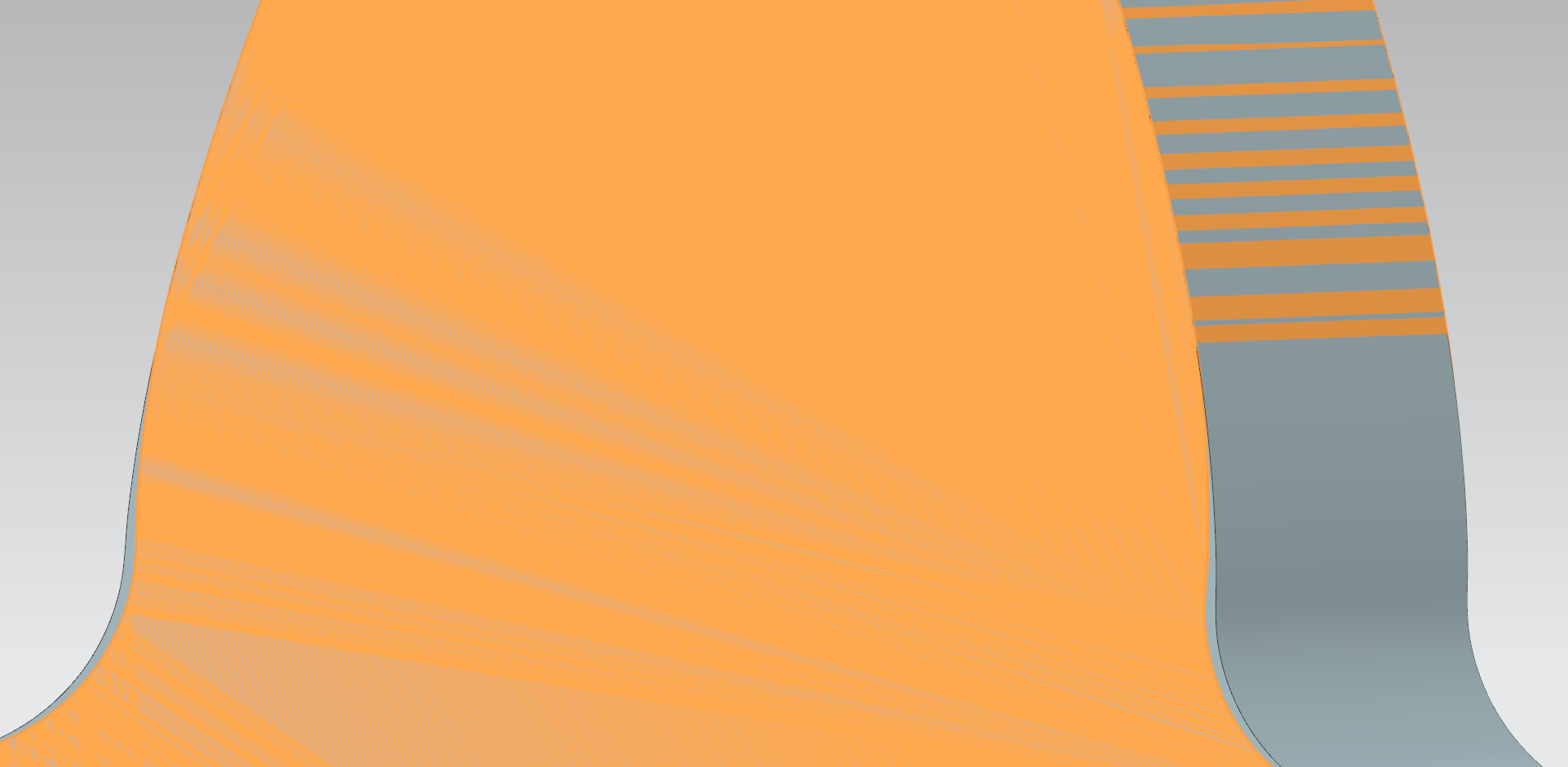

A middle portion overlaps — material has been removed from the tip and root areas.

Lead modification is actually quite similar to profile modification. For spur gears, the gear doesn't need to rotate; the stylus works essentially like a standard profilometer. For helical gears, the gear does rotate to ensure the stylus scans top-to-bottom along a theoretically straight trajectory. How much rotation? You need to calculate the lead from your gear parameters, then determine the rotation angle as the stylus moves up and down. The relationship between stylus velocity and gear angular velocity is also linear. So if the helix angle is correct, the result is a straight line; if not, the measured line will be skewed. If the lead quality is poor, the scanned line will be wavy and irregular. Understanding lead modification is then straightforward: per the drawing requirements, reduce the tooth thickness by the specified modification amount at the given lead position, and the stylus will naturally deflect by the corresponding amount. Let's look at the difference between a gear with lead modification only and the theoretical tooth surface.

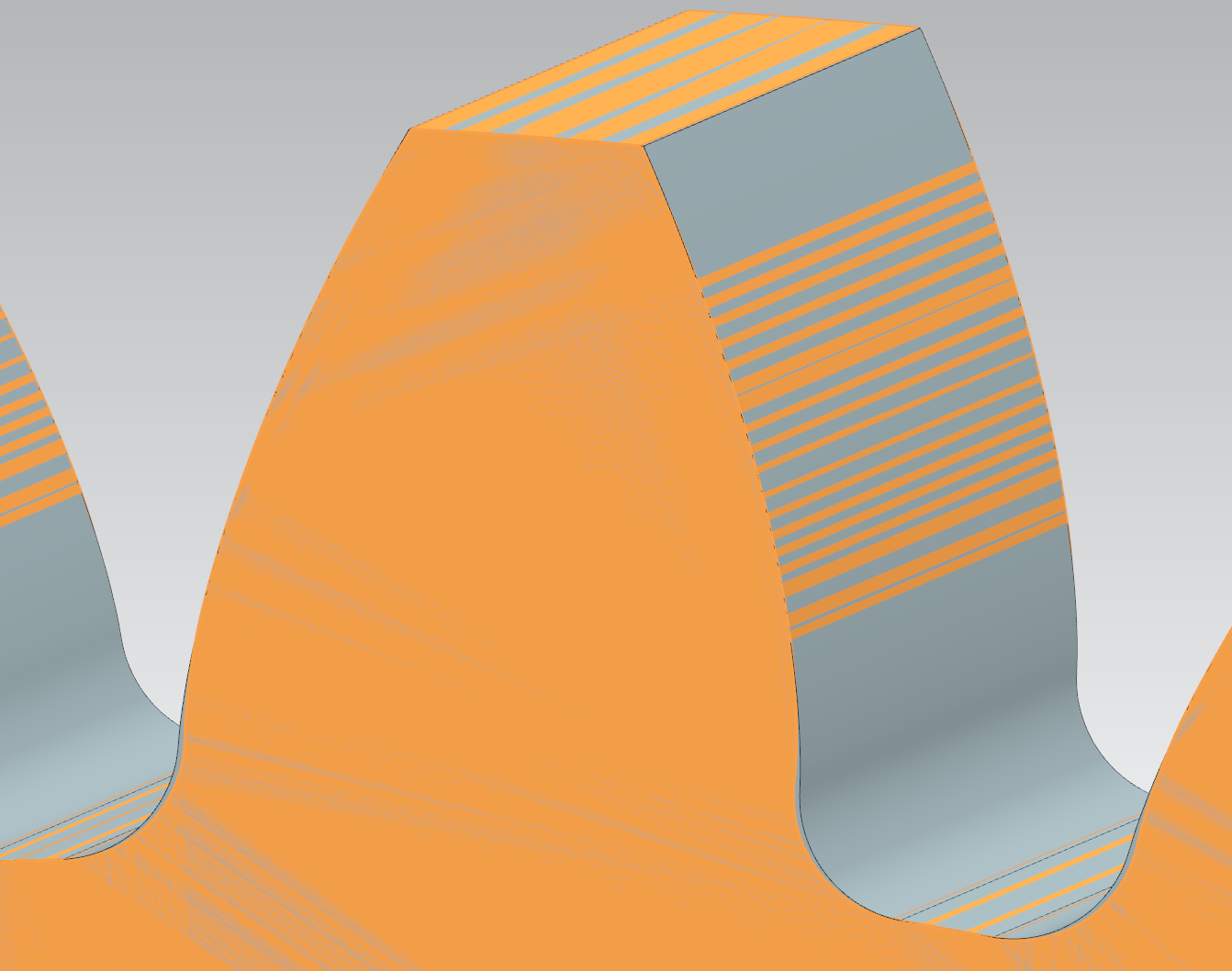

Overlap exists only in a small central area.

The maximum modification occurs at both ends, and the modification curve follows a circular arc.
