On Involute Gear Profile Modification

Many people have read books or articles about involute gear profile modification and been confused by all the high-level descriptions. After reading so many materials, they still don't understand what gear profile modification actually is. Today, let's start from the most basic understanding and see what kind of technology gear profile modification really is.

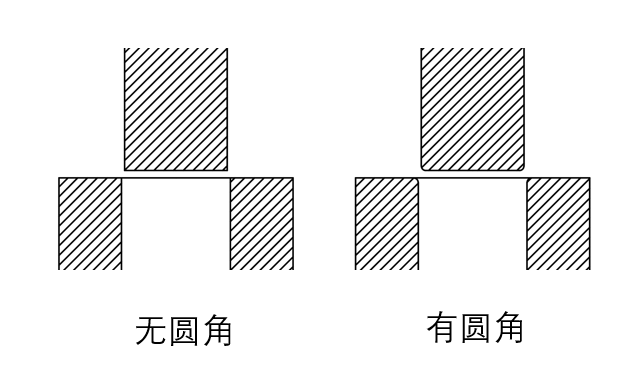

I believe everyone has designed shaft-and-hole fits, and you must have experienced that the ends of shafts and holes need chamfers or rounds, otherwise assembly will be difficult.

Gear meshing works the same way. When two tooth surfaces first make contact during meshing, the position is just right. But once manufacturing or mounting errors exist, the teeth need to be "forced in" at the moment of engagement, producing unwanted meshing impact.

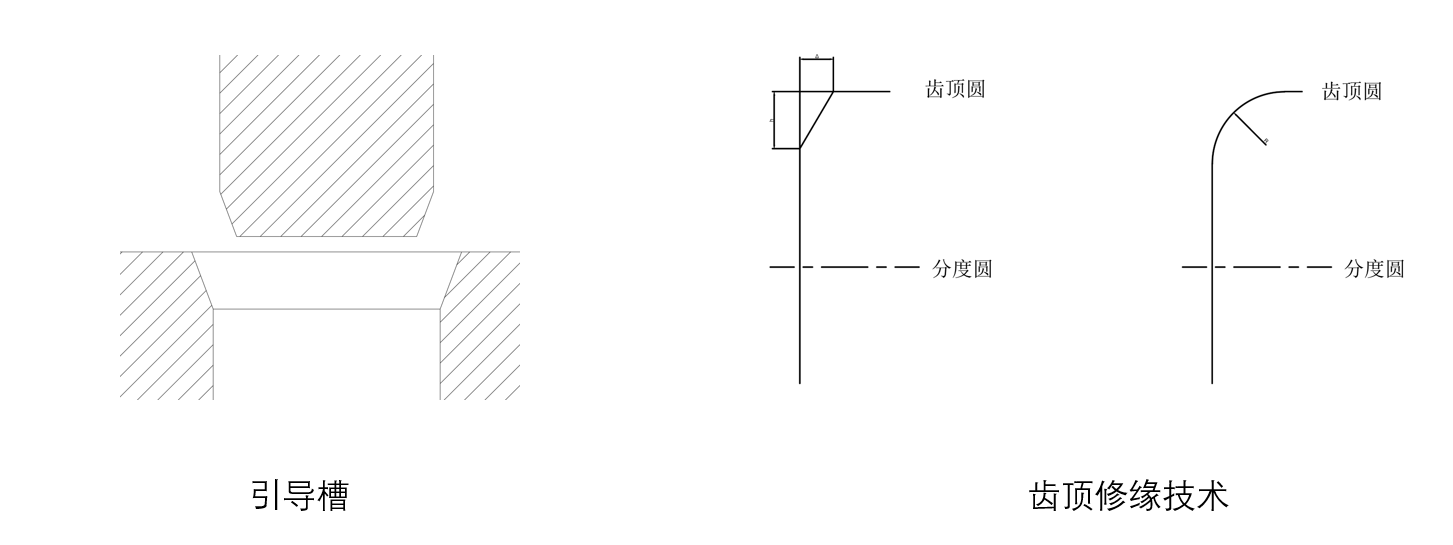

So the tip relief technology in involute gears is essentially a "lead-in chamfer."

Now we understand that gear profile modification is useful. How useful? Just as useful as having a lead-in chamfer on a shaft-and-hole fit.

The essence of gear profile modification is removing material from certain areas of the tooth surface to create a lead-in effect, allowing smooth engagement and disengagement even when manufacturing and mounting errors prevent a "perfect" mesh.

Since a simple tip chamfer could solve the problem, why does everyone use K-profile modification? One reason is that it saves money.

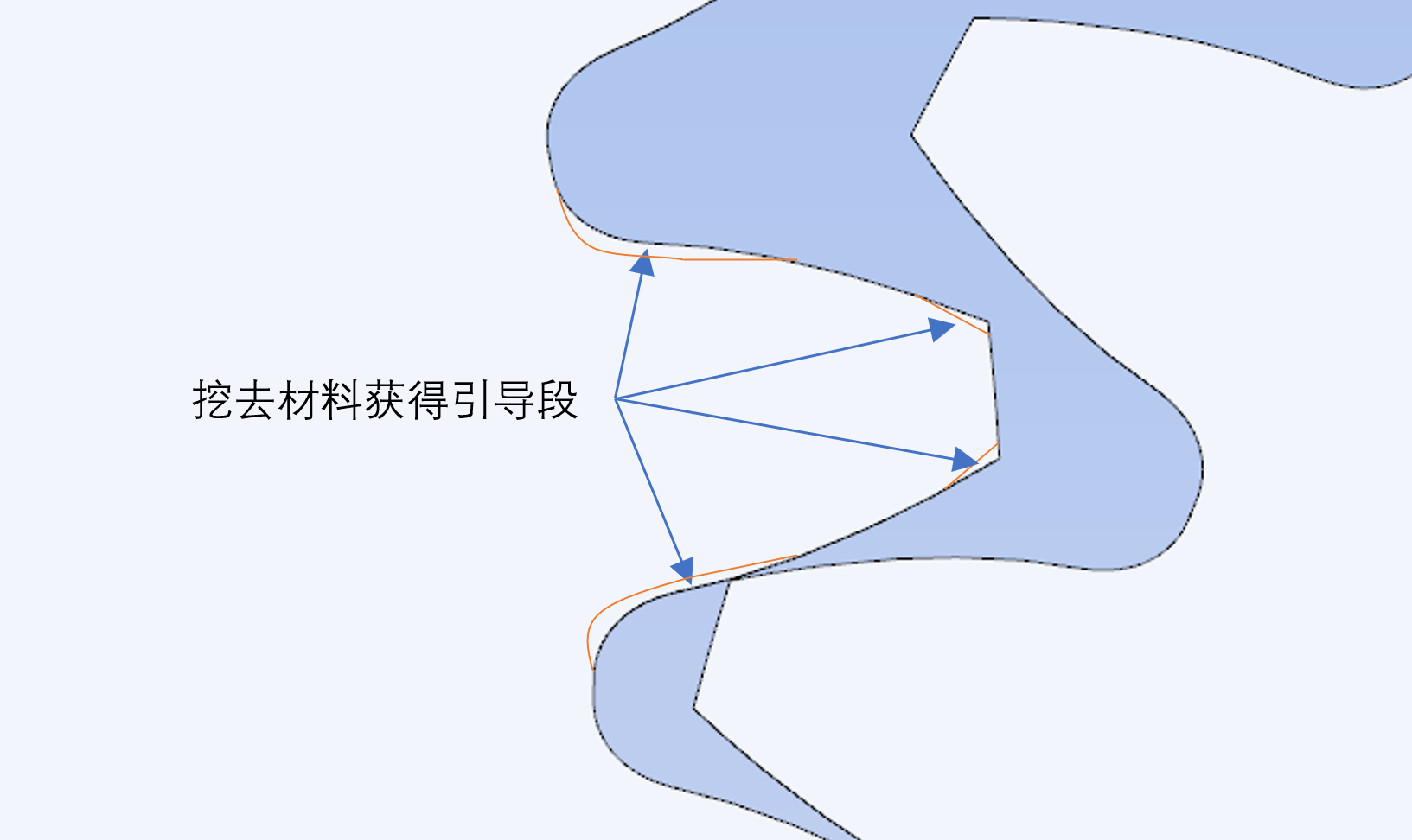

Schematic of tip relief technology

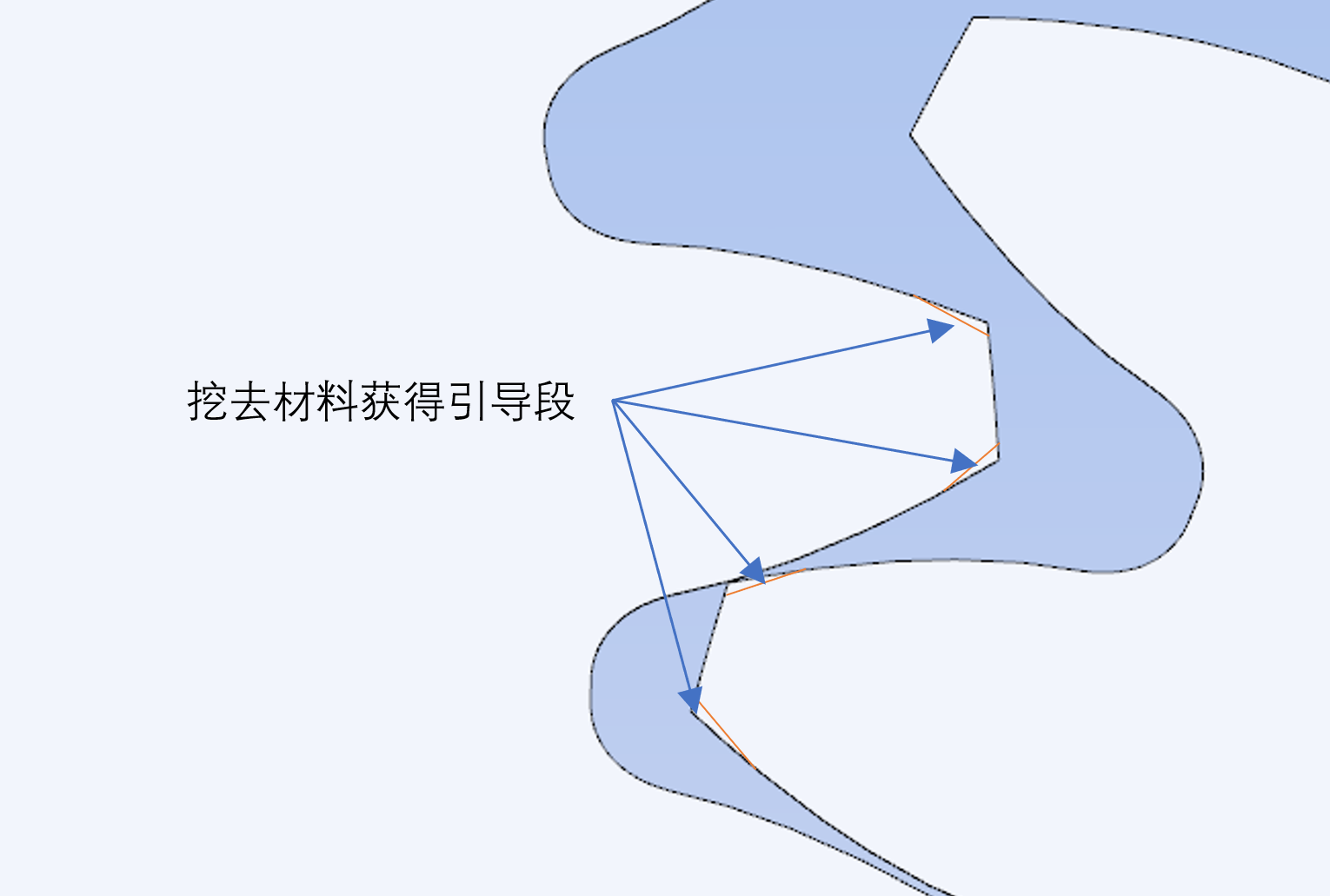

Schematic of K-profile modification technology

We can see that for the same "lead-in" effect, tip relief requires material removal on both gears, requiring custom tools for both. With K-profile modification, only one gear needs a custom tool — the other may use a standard tool.

If that were the only benefit, it wouldn't be such a big deal. The core capability that drives widespread adoption of K-profile modification is its ability to lock the contact ratio.

How important is the contact ratio? Mechanical principles state two basic conditions for continuous gear transmission: first, the module and pressure angle of both gears must be equal; second, the contact ratio must be ≥ 1. The requirement for contact ratio ≥ 1 is at the same level of importance as equal module and pressure angle.

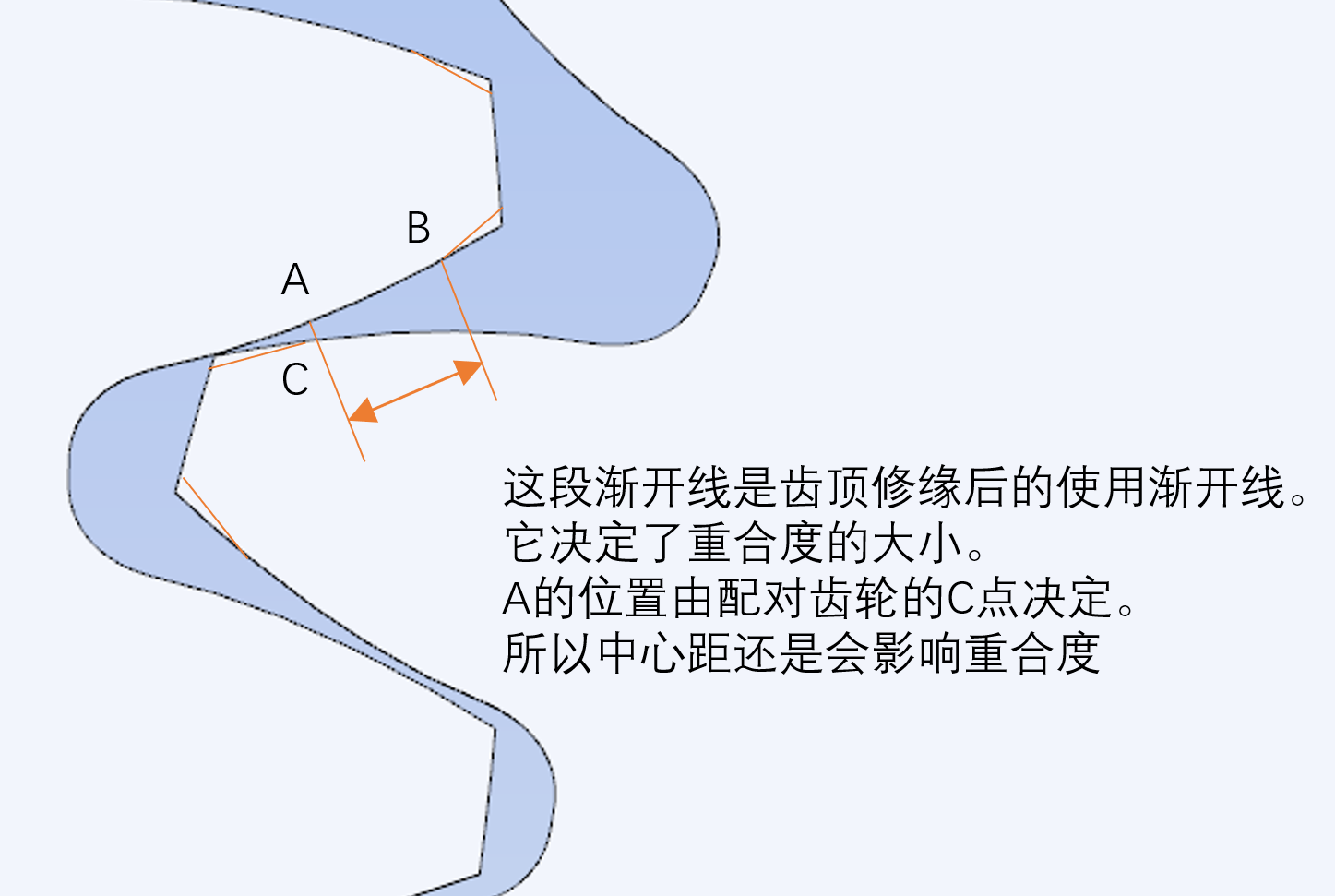

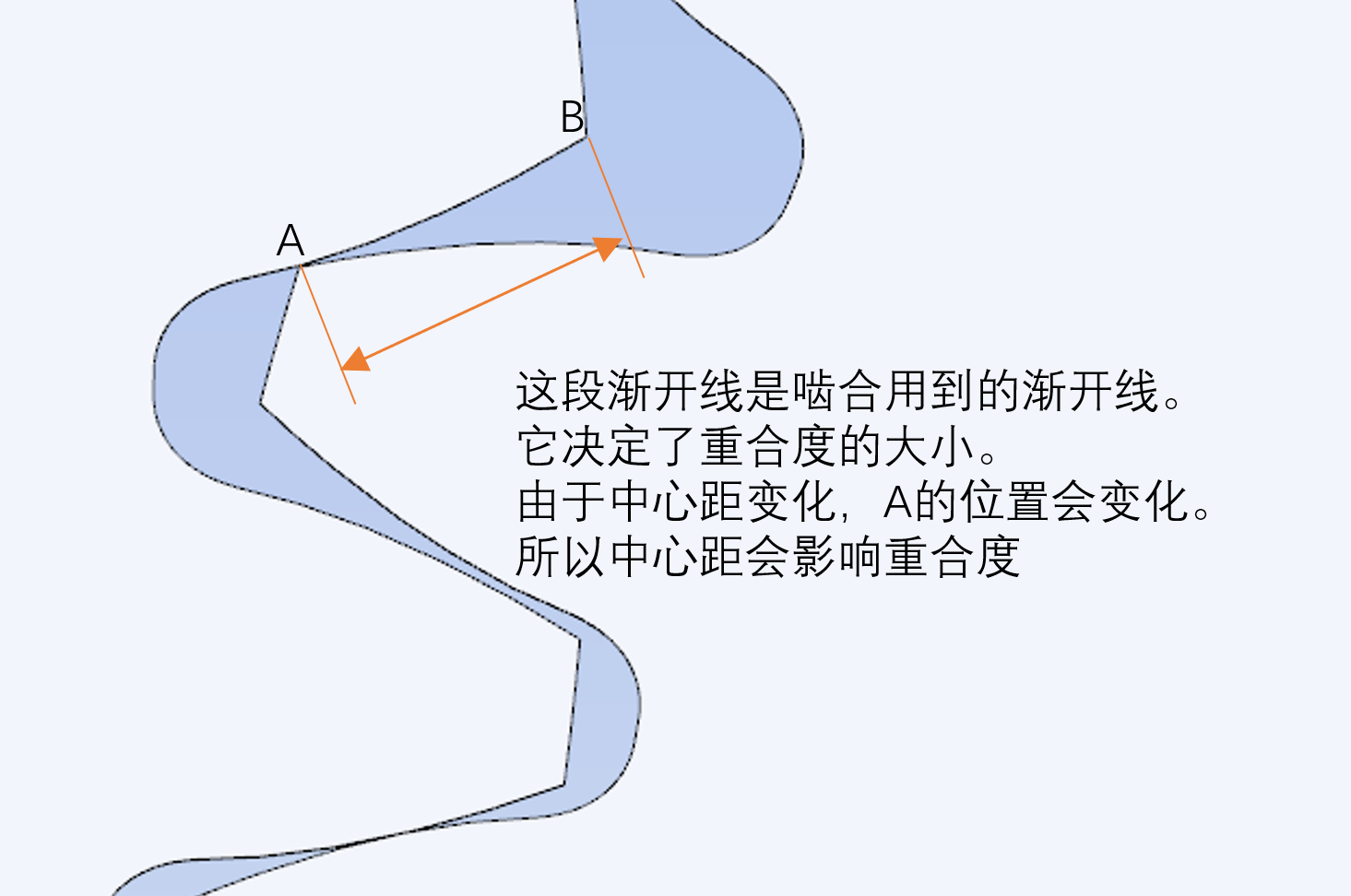

From various literature and online resources, a widely cited viewpoint is that performance is optimal when the contact ratio is an integer. However, achieving an integer contact ratio is quite difficult. Because center distance affects the contact ratio — for the same gear pair, increasing center distance decreases the contact ratio and vice versa. (Note: this assumes completely fixed gear parameters.) Even with a theoretical integer contact ratio, center distance tolerances will cause the contact ratio to fluctuate within a range. Due to this fluctuation, we cannot design a gear with a contact ratio of exactly 1, as there would be no safety margin — in practice, the contact ratio could drop below 1.

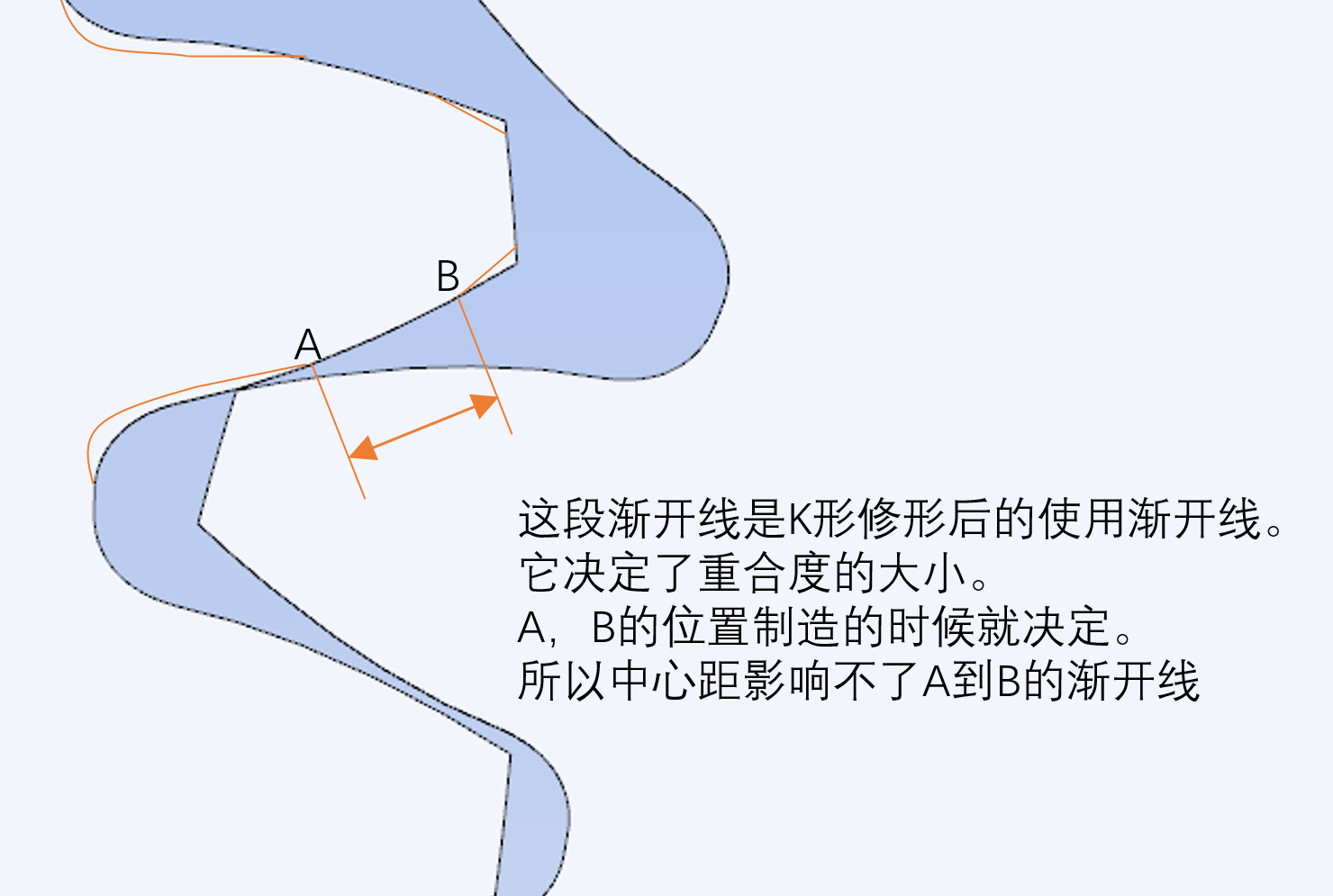

K-profile modification can lock the contact ratio at your desired value, unaffected by center distance tolerances.

Required knowledge point 1: The origin of the contact ratio formula. The contact ratio is calculated as the length of the line of action corresponding to the involutes of both meshing gears divided by the base pitch.

Based on the above characteristics, achieving integer contact ratio becomes much easier — design normally, then use K-profile modification to adjust the contact ratio to an integer. K-profile modification enables normally designed gears to achieve specific contact ratio meshing characteristics.

Now that we know the purpose of K-profile modification, what about the frequently discussed "long modification" and "short modification"? Short modification is a modification position calculation method that guarantees a contact ratio of 1. Long modification is a design approach that reduces the contact ratio below 1, primarily considering the effect of deformation on meshing. After long modification, the contact ratio depends on the original value — if it was 1.2 before modification, it becomes 0.8 after; if 1.5, then 0.5. Generally, gears with long modification have minimum vibration noise at full load, but significantly increased noise at light or no load. Therefore, it is mainly used for soft gears (plastic) or gears with large helix angles. We generally recommend the short modification algorithm. Long modification requires experience, and we recommend that those needing it gradually reduce the contact ratio using custom contact ratio modification theory to find the right value. Directly using the long modification algorithm can lead to unstable product quality.

In summary: tip relief is the "lead-in chamfer" that significantly improves meshing impact. K-profile modification mainly includes short and long modification. Short modification locks the contact ratio at 1. Long modification allows soft gears with large deformation to achieve better meshing performance. We can also customize modification based on desired contact ratio for specific designs. These two features give modified involute gears advantages over unmodified ones.

Besides profile modification, in practice we also perform lead modification. This includes end chamfering and crowning.

End chamfering also serves as a lead-in function.

Lead crowning essentially makes the helix angle a range rather than a single value.

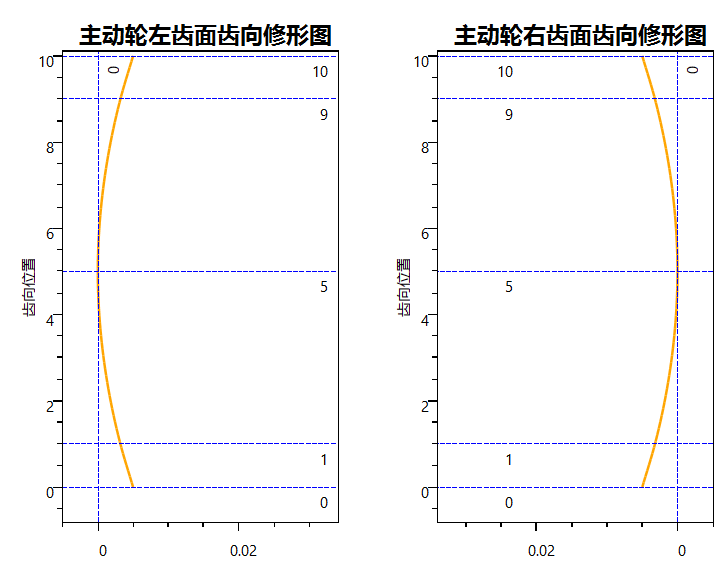

The above shows a lead modification schematic. This gear has a face width of 10mm. At the middle (5mm), the helix angle equals the design value β. At both end faces, the helix angle varies, achieving a gradual transition within β±Δβ.

The problem it solves is that actual gear installation cannot achieve perfect parallelism. There is a high probability of a small angular misalignment, which technically makes the system "crossed axes." In crossed-axis systems, the helix angles no longer match the design. Since after modification the helix angle is not fixed but a range, the gears can still achieve ideal meshing even in a crossed-axis configuration. Without this, incorrect helix angles would cause meshing problems (essentially unequal-module meshing). Note that "crossed axes" produces point contact, which is prone to wear. Therefore, lead modification amount requires trade-offs. Too much modification means a large usable helix angle range, tolerating larger mounting errors. But larger helix angle variation reduces the crown radius in the lead direction, shortening the actual contact line length under load, approaching point contact and increasing wear. So lead modification must be comprehensively considered — too much causes wear, too little provides poor correction for shaft non-parallelism.

This covers the principles of involute gear profile and lead modification. I hope it helps with your future gear modification design. Gear modification is not mysticism — it has solid theoretical foundations.

Preview of the next topic: What gear knowledge should companies focus on today? Is the most advanced gear knowledge always the most useful?
