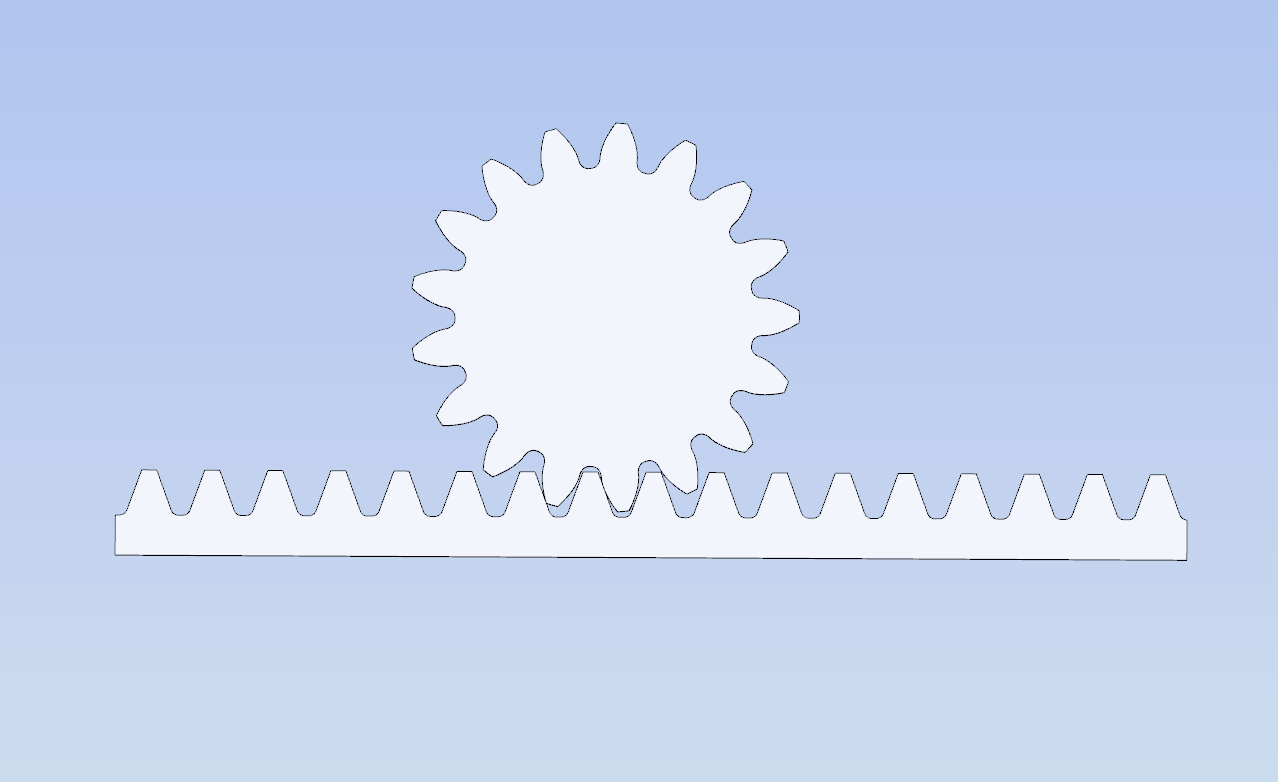

Gear-Rack Module Released

This module features the following functions:

One-click calculation function that automatically calculates detailed gear-rack parameters and performs geometric verification.

Strength verification function.

Backlash calculation included — what you see is what you get; parts can be manufactured directly according to the software values.

Tolerance calculation included, enabling simulation of all post-machining dimensions for verification, identifying problems early to mitigate risks.

Calculate matching rack from gear parameters.

Calculate matching gear from rack parameters.

Support for variable pressure angle design.

Precise 3D modeling.

Export 3D files (STP format).

Animation function.

Module operation video tutorial:

https://www.bilibili.com/video/BV1P8411c778/?spm_id_from=333.337.search-card.all.click&vd_source=87d3cb9467db6e00dabdabf72cbe4032

Training video original file download:

Alibaba Cloud Drive

https://www.aliyundrive.com/s/t9KCTVquUcz

Baidu Cloud

https://pan.baidu.com/s/1YCufP5IMO1BxL-RrzTg0JQ Extraction code: 2aaa

Presented by ETAGEAR

3/13/2023 7:00:00 PM
